DPI 100kW Turbine
With the SGIP rebate
and Frederal Tax incentives the payback on this
turbine in California is typically less than 2 years. If you live
in a
good wind resource area and have a need for power, this is an
investment that you can not afford not to make.
We
manufacture this turbine from a design that has over 25 years of
proven reliability, performance, and low maintenance. The

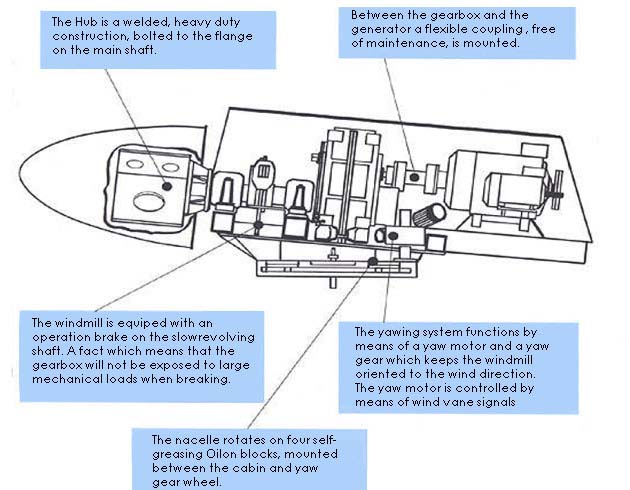

turbine generator consists of a 3 blade turbine assembly attached to a
shaft
supported by two pillow block bearings with a brake rotor between the
bearings.
The shaft is attached to a speed increaser that produces the necessary
1800 rpm for the generator. The entire assembly is situated on an 85 ft
tall lattice tower. The system has automatic over speed control and yaw
sensing and control. The over speed control is primarily a hydraulic
brake on
the slow speed shaft with turbine blade spoilers as a backup.
� Foundation: 4 reinforced concrete piers 5 ft
diameter x 18 ft deep
� Lattice Tower: primed steel
� Turbine Blades: fiberglass with wood spar
� Turbine blade hub assembly: steel
� Turbine slow speed shaft: 6 inch steel shaft
� Pillow Block Bearings: SKF spherical roller
bearing with split pillow block housing
� Brake rotor and hydraulic brake assembly
� Speed increaser: 25 to 1 increaser shaft
mounted gear box or Gates Power band system
� Generator: induction generator
� Yaw Control System: including weather vane
and controller with Bull Gear and Pinion Gear
Features:
Warranty:
The DPI 100kW wind turbine comes with a full 1 year manufacturer�s
warranty on the components.
Service Agreement:
Typical installations include a 3 year monthly maintenance agreement.
Call
us today for pricing and
installation!
